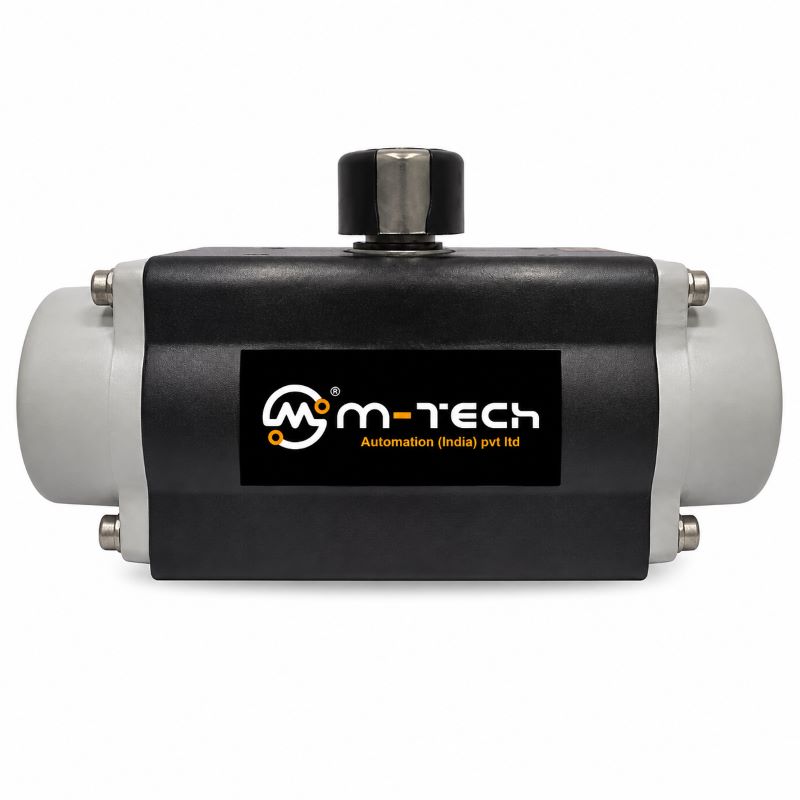

Pneumatic Rotary Actuator
Hard-anodized extruded aluminium dual piston rack & pinion pneumatic rotary actuators designed for 1,000,000 operation cycle life, precision quarter-turn valve automation, and direct accessory mounting.
Pneumatic Rotary Actuator Technical Specifications
M-Tech Pneumatic Rotary Actuators are engineered for quarter-turn ball, butterfly, and plug valve automation. Built with hard anodized extruded aluminum body, die-cast aluminum dual pistons, nickel-plated alloy steel shafts, and life-long lubrication to deliver up to 1,000,000 trouble-free operations across harsh process environments.
Pneumatic Rotary Actuator
Standard & Technical Data
- Movement : Standard adjustable 90°±5%
- Lubrication : All moving parts are lubricated for life-long cycle
- Cycle Life : 1,000,000 Operations
- Body : Hard anodized extruded Aluminium alloy
- Indicator : Open / Close Disc
- Travel Stops : External adjustable ±5% in both open/closed position
- Springs : High tensile spring sets of alloy steel
- Piston Shaft : Nickel plated alloy steel reduces friction
- Piston Guides : Self lubricating (Polypropylene + GF) Piston Seals Nitrile**
- Piston : Die casted aluminium dual piston
- End Caps : Polyester coated die cast aluminium
Working Pressure & Temperature Rating
- Standard Temperature : -20 ~ +80 Degree
- Low Temperature : -50 ~ +80 Degree
- High Temperature : -15 ~ +150 Degree
Range of Standard Accessories Available for Direct Mounting
- Solenoid Valve
- Limit Switch Boxes
- Electro-pneumatic Positioner
- Declutchable Manual Override Gearbox
- High Visibility Indicator
