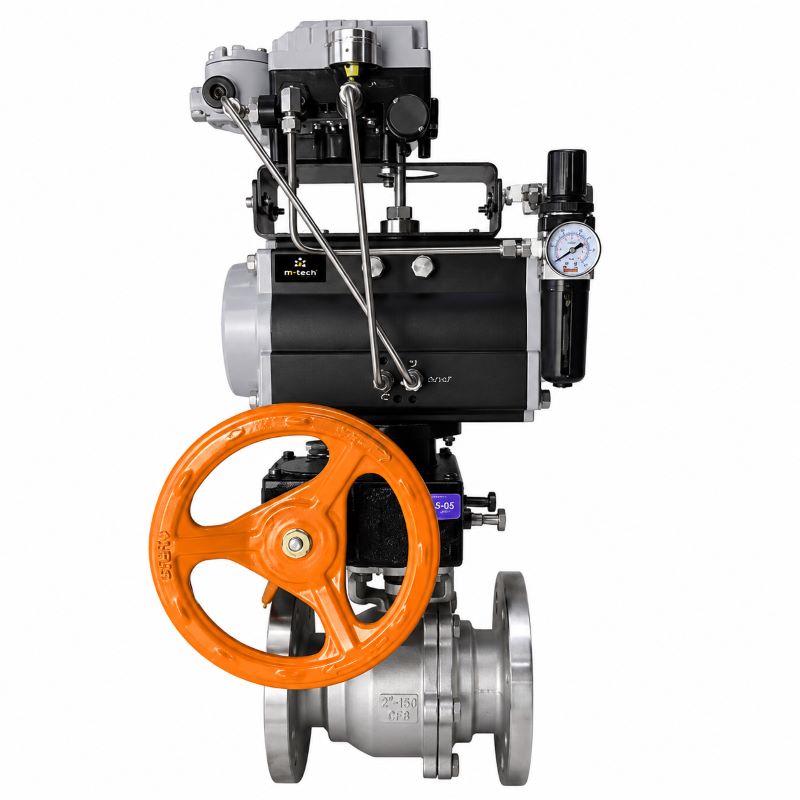

Pneumatic Ball Valves
Automated quarter-turn (90°) pneumatically actuated ball valves engineered for ISO 5211 direct mounting, tight shut-off, high flow capacity, and high-temperature FEP/PFA lining for aggressive industrial process pipelines.
Pneumatic Ball Valves Technical Overview
M-Tech Pneumatic Ball Valves provide high-reliability quarter-turn (90°) fast automatic operation. Built with heavy-duty WCB / CF8 / CF8M body materials, optional FEP / PFA body & ball moulding, PTFE / GFT / CFT seats, and stainless steel actuator mounting brackets rated for up to 150# flanged end connections.
Pneumatic Ball Valves
Standard & Technical Data
- SIZE : 25 MM TO 100 MM
- BODY : WCB / CF8 / CF8M
- BODY MOULDING : FEP/PFA
- BALL : S.S
- BALL MOULDING : FEP / PFA
- BALL SEAT : PTFT / GFT / CFT
- ACTUATOR MOUNTING BRACKET : S.S
- TEMP. : MAX UPTO: PFA-180°C | FEP-230°C
- END CONN. : FLANGED END
- RATING : 150#
Main Features
- Quarter-turn (90°) fast operation
- Pneumatically actuated (air operated)
- ISO 5211 direct mounting design
- Tight shut-off, low leakage
- Compact, robust construction
- Wide pressure & temperature range
- High flow capacity, low pressure drop
- Compatible with solenoids & positioners
- Suitable for industrial automation applications
