Pneumatic Butterfly Valves
Compact and lightweight quarter-turn (90°) pneumatically actuated butterfly valves with ISO 5211 direct mounting, fast opening/closing action, low air consumption, and EPDM/Nitrile resilient seats rated for PN 10 / PN 16 piping systems.
Pneumatic Butterfly Valves Technical Overview

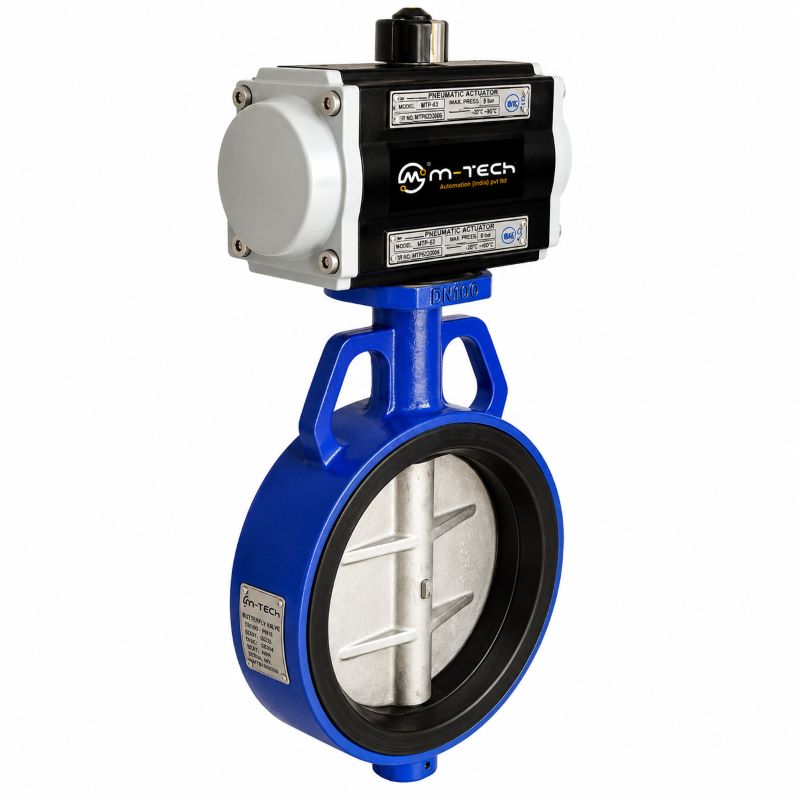

M-Tech Pneumatic Butterfly Valves (Model: LE-BV-A 10) deliver efficient, low-air-consumption quarter-turn flow control in sizes from 40 mm to 600 mm. Built with C.I / WCB body, S.G. Iron / WCB / CF8 / CF8M disc options, and resilient EPDM / Nitrile seats for tight shut-off up to PN 10 / PN 16 pressures and 120°C temperatures.
Pneumatic Butterfly Valves
Standard & Technical Data
- SIZE : 40 MM TO 600 MM
- MODEL : LE-BV-A 10
- BODY : C.I / WCB
- DISC : S.G. IRON / WCB / CF8 / CF8M
- SEAT : EPDM / NITRILE
- PRESSURE : UPTO PN 10 / PN 16
- TEMP. : UPTO 120°C
- END CONN. : WAFER TYPE
- RATING : PN 10 / PN 16
Main Features
- Quarter-turn (90°) pneumatic operation
- Fast opening and closing action
- Compact and lightweight design
- ISO 5211 direct actuator mounting
- Suitable for on/off & modulating service
- Low air consumption
- Tight shut-off with resilient or metal seats
- Wide pressure and temperature range
- Compatible with solenoids & positioners
- Ideal for large-diameter automated piping
